Mangalyaan

Overview

India's Mars Moment

The Mars Orbiter Mission — Mangalyaan (Sanskrit: mangala = Mars, yāna = vehicle) — was announced in August 2012 and launched just 15 months later on November 5, 2013. When it entered Mars orbit on September 24, 2014, India joined an elite club of three: USSR, USA, and ESA. No other Asian nation had done it. No agency had succeeded on its first attempt — until India.

The mission was designed as a technology demonstrator — proving that ISRO could navigate interplanetary distances, execute complex orbital manoeuvres, and operate a spacecraft in deep space. It succeeded on every count and then some.

The total cost was ₹450 crore — less than the Hollywood film Gravity ($100M), less than NASA's Maven mission ($671M), and a number that shocked the world into paying attention to India's space programme.

The Frugal Engineering Miracle
Mangalyaan cost ₹7 per kilometre of its journey to Mars. India reached Mars for less than what it costs to make a mid-budget Bollywood film. This is ISRO's superpower — maximum science per rupee spent.

Launch Date

Nov 5, 2013

Mars Arrival

Sep 24, 2014

Launch Vehicle

PSLV-C25

Spacecraft Mass

1,337

kg

Periareion

420

km

Apoareion

80,000

km

Instruments

5

Mission Cost

₹450 Cr

Built In

15

Months

Actual Duration

8

Years (2013–2022)

Designed For

6

Months

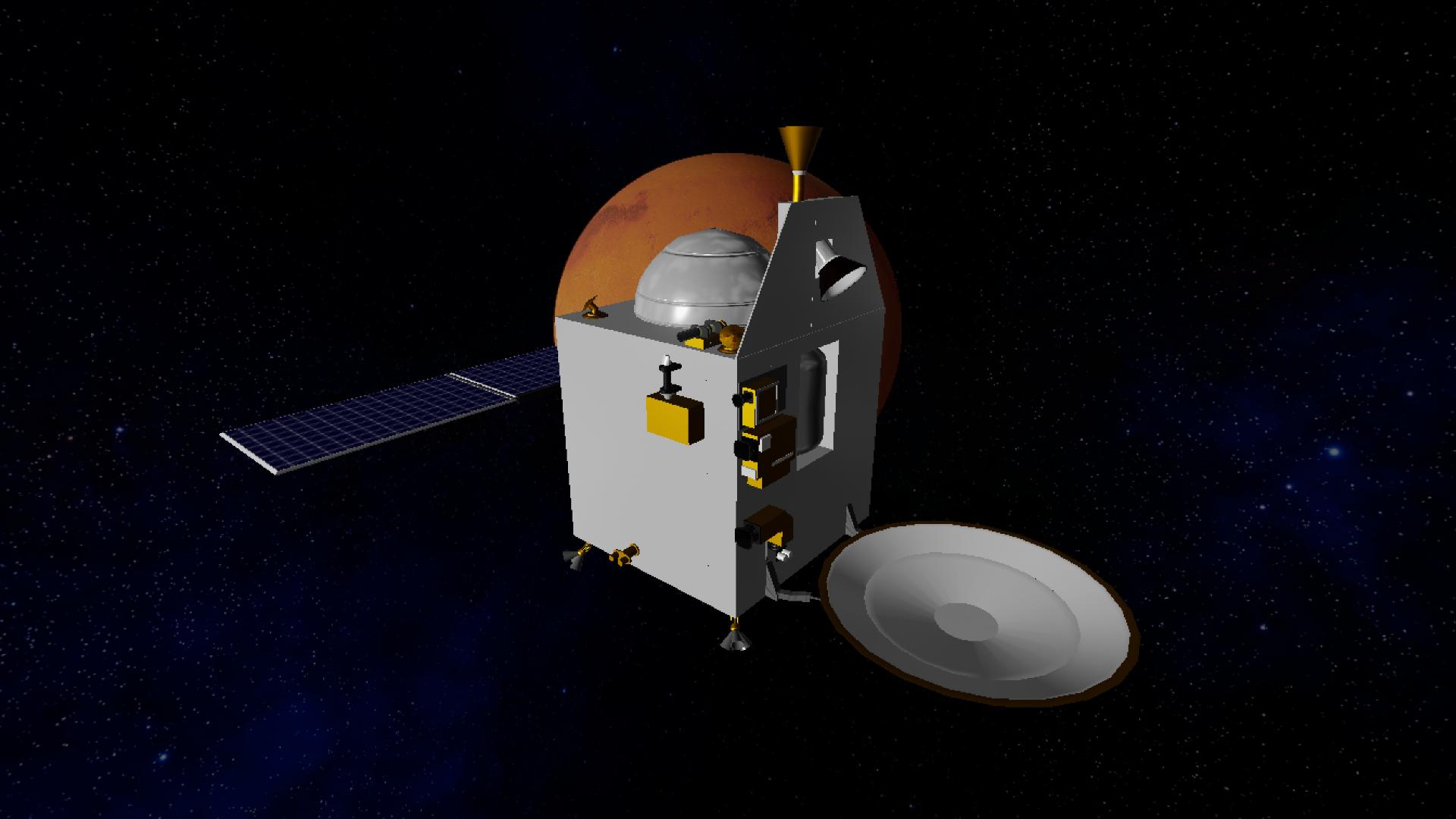

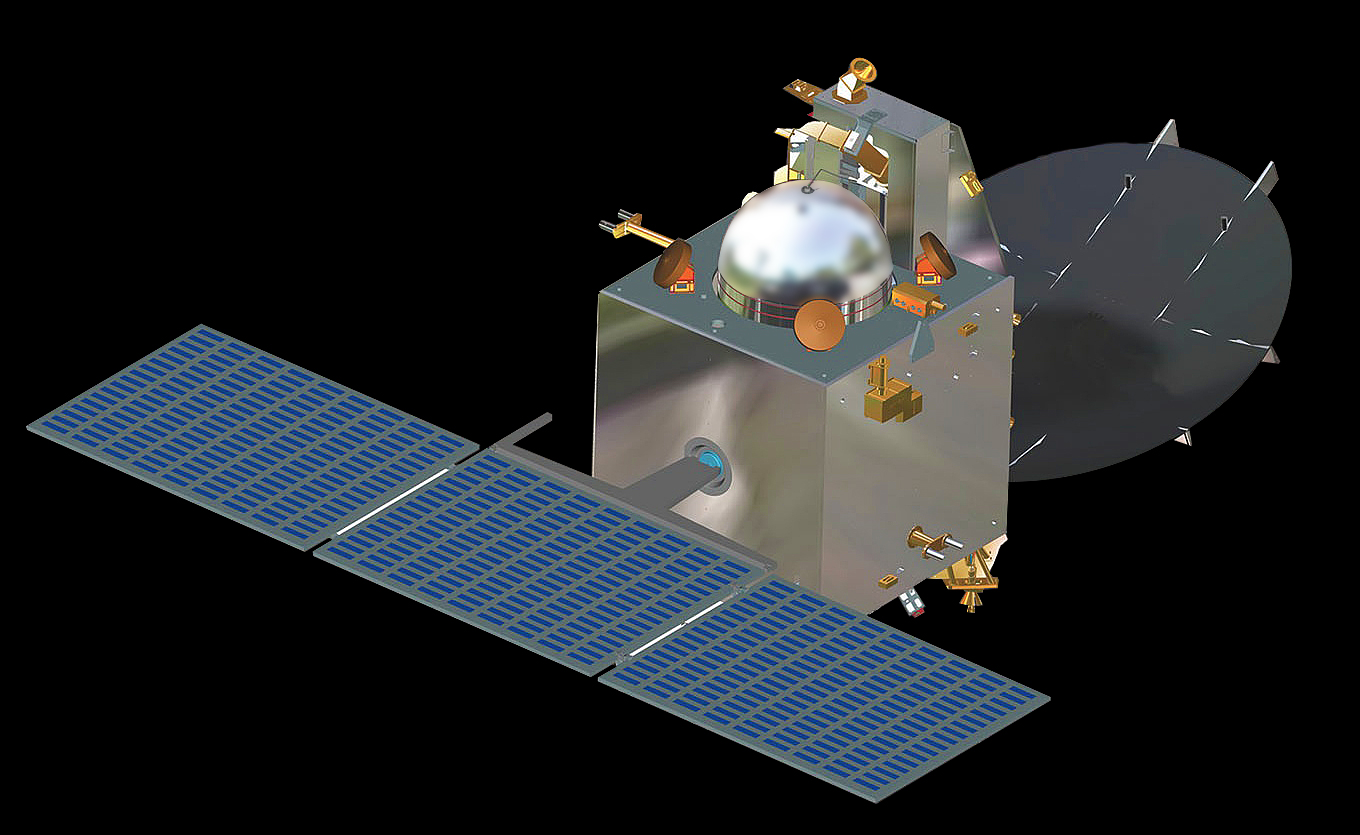

Spacecraft

The Mars Orbiter

Mangalyaan carried five science instruments designed to study Mars's surface, morphology, atmosphere, and exosphere. The spacecraft used ISRO's I-1K bus — a heritage platform adapted for deep space with significant upgrades for autonomous fault detection and recovery.

Mars Colour Camera (MCC) — took hundreds of images of Mars's surface and its moons Phobos and Deimos. Produced some of the most stunning Mars imagery ever captured.

Thermal Infrared Imaging Spectrometer (TIS) — measured surface temperature and thermal emission to map mineralogy.

Methane Sensor for Mars (MSM) — searched for methane in the Martian atmosphere, which would indicate possible biological or geological activity.

Mars Exospheric Neutral Composition Analyser (MENCA) — studied the upper atmosphere and exosphere composition.

Lyman Alpha Photometer (LAP) — measured deuterium/hydrogen ratio to understand Mars's water loss history.

Instruments

5

Science Payloads

Propellant

852

kg MMH+MON3

Power

840

W Solar

Main Engine

440N LAM

Comm Band

S & X Band

Data Rate

1.5

Mbps max

The Journey

300 Million Kilometres

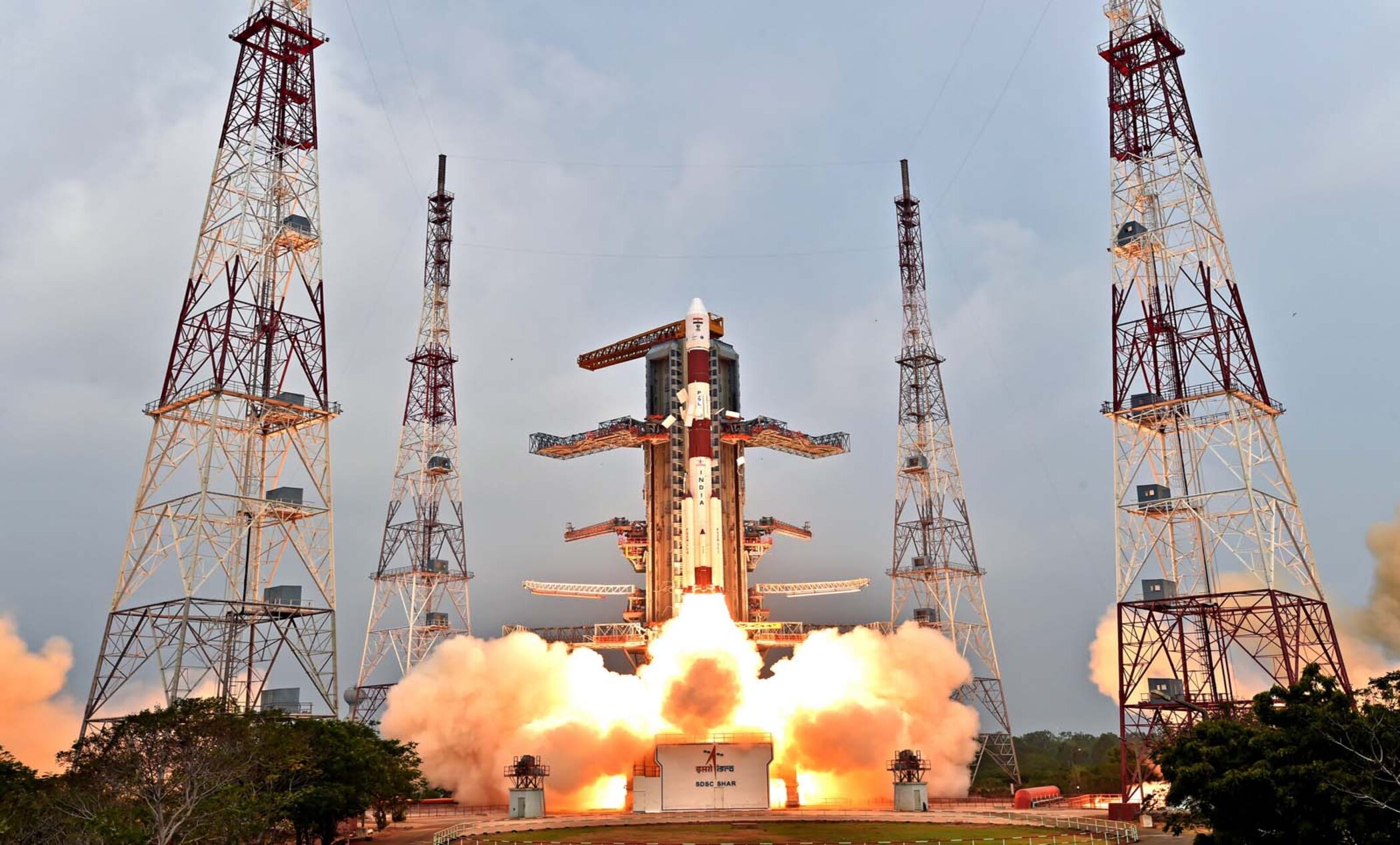

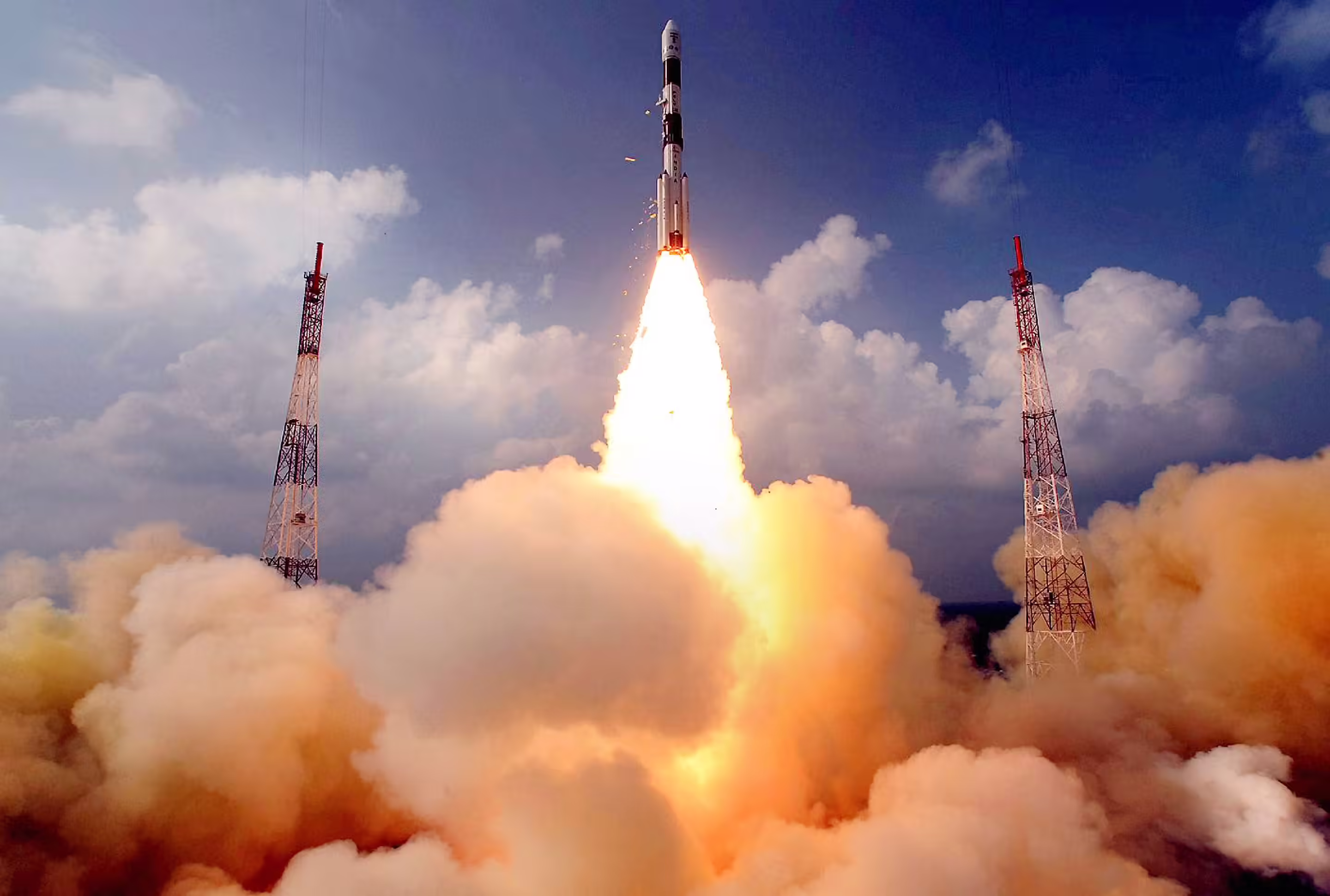

Nov 5, 2013

Launch — PSLV-C25, Sriharikota

Mangalyaan lifts off on PSLV-C25. Inserted into Earth parking orbit at 250 × 23,550 km. India begins its Mars journey.

Nov 5–30, 2013

Earth Orbit Manoeuvres — Including a Brilliant Recovery

Six orbit-raising manoeuvres raise apogee progressively. On November 11, 2013, during the fourth manoeuvre, the LAM engine underperformed — delivering less thrust than commanded. The apogee reached was lower than planned. ISRO engineers diagnosed the problem overnight and executed a precise contingency burn on November 12, correcting the trajectory completely. This near-miss recovery — never widely publicised — demonstrated exactly the kind of engineering resilience that makes ISRO exceptional.

Dec 1, 2013

Trans-Mars Injection

The critical 1,328-second burn by the LAM engine accelerates Mangalyaan to escape velocity. It breaks free of Earth's gravity and begins its 300 million km journey to Mars.

Dec 2013 – Sep 2014

The Long Cruise — 300 Million km

Mangalyaan travels through deep space for 10 months. ISRO performs trajectory correction manoeuvres. The spacecraft enters Mars's sphere of influence on September 22, 2014.

Sep 24, 2014 · 7:17 AM

Mars Orbit Insertion — History Made

The 1,388-second burn places Mangalyaan into Mars orbit. India is only the fourth entity in history to reach Mars — and the first to do it on the first attempt. The ISRO control room erupts. The world takes notice.

Oct 2014

Comet Siding Spring — Emergency Manoeuvre

Just weeks after arrival, Comet Siding Spring passed within 140,000 km of Mars — dangerously close. ISRO performed a critical manoeuvre to position Mangalyaan on the far side of Mars, shielding it from the comet's high-velocity dust particles. The spacecraft survived. A major operational milestone few people know about.

Every ~2 Years

Solar Conjunction — 15 Days of Silence

Every two years, Earth and Mars align on opposite sides of the Sun — a Solar Conjunction. For ~15 days, all communication with Mangalyaan goes dark. No commands can be sent. No data received. The spacecraft operated entirely autonomously during these blackout periods — detecting faults, managing power, and maintaining orbit on its own. This was Mangalyaan's greatest technical test, repeated multiple times across 8 years. It passed every time.

2014–2022

8 Years — Far Beyond Design Life

Designed for 6 months, Mangalyaan operated for 8 years — transmitting data, capturing images, and monitoring Mars continuously. ISRO's engineering excellence kept a spacecraft alive for 16 times its planned life. A testament to frugal, robust design.

Apr 2022

End of Mission — Battery Depleted

Mangalyaan entered a long eclipse — the Sun blocked by Mars for longer than its battery could survive. When it emerged, the spacecraft could not recover. On April 2022, ISRO declared the mission over. Eight years. One spacecraft. India's Mars sentinel went dark — but its legacy will never fade.

Science

What Mangalyaan Found

📸

Full Disk Images of Mars

MCC captured stunning full-disk images of Mars — including its iconic dust storms and polar ice caps — from Mangalyaan's highly elliptical orbit, giving a global view unavailable from lower orbits.

🌫️

Mars's Methane Mystery

MSM measured methane levels in Mars's atmosphere. The findings contributed to the global scientific debate about whether Mars has current geological or biological activity — one of the biggest questions in planetary science.

💧

Water Loss History

LAP measured the deuterium-to-hydrogen ratio in Mars's exosphere, helping scientists understand how Mars lost its water over billions of years — crucial for understanding why a once-habitable planet became a desert.

🌍

Phobos & Deimos Imaged

MCC captured high-quality images of Mars's two moons — Phobos and Deimos — during the mission. These images added to our understanding of these captured asteroid-like bodies orbiting Mars.

Context

India vs The World

How Mangalyaan compares to other Mars missions — and why the world was stunned.

Mangalyaan (MOM)

ISRO · India

₹450 Cr (~$74M)

✓ Yes · Success

Maven

NASA · USA

$671M

—

Mars Express

ESA · Europe

€300M

—

Tianwen-1

CNSA · China

~$240M

—

Gravity (film)

Hollywood

$100M

Fiction

The Gravity Comparison
The film Gravity cost $100M to make. India reached actual Mars for less. When this comparison went viral globally, it crystallised for the world what Indian space engineering is capable of. Cost-efficiency is not a compromise — it is India's competitive advantage.

Legacy

What Mangalyaan Means

🚀

Proved India Can Do Interplanetary

Before Mangalyaan, no one knew if ISRO could navigate 300 million kilometres and execute complex interplanetary manoeuvres. Now everyone knows. India has the deep space capability.

🌏

Changed Global Perception of India

International media called it a "budget miracle." The New York Times ran a cover story. India's space programme went from regional interest to global headline. Mangalyaan was India's Sputnik moment.

🔬

Foundation for Mars 2

The data, engineering lessons, and team experience from Mangalyaan directly informs ISRO's planned Mars Lander Mission — a far more ambitious mission that will attempt to land on Mars's surface.

🇮🇳

The Postage Stamp Moment

India released a postage stamp commemorating Mangalyaan's success. The image of scientists in traditional sarees celebrating at ISRO's control room — joy, colour, and triumph — became one of the most iconic photographs in Indian science history.

Ground Segment

IDSN — 300 Million km of Signal

Every command ISRO sent to Mangalyaan across 300 million kilometres of space — and every image and dataset it returned — passed through the Indian Deep Space Network (IDSN) at Byalalu, Karnataka. The 32-metre dish antenna at IDSN tracked Mangalyaan continuously, maintaining communication across a distance that light itself takes 20 minutes to cross. Without IDSN, there is no Mangalyaan mission.

Mission Photos

In Pictures

Swipe or click arrows to browse. Click any photo to zoom.
